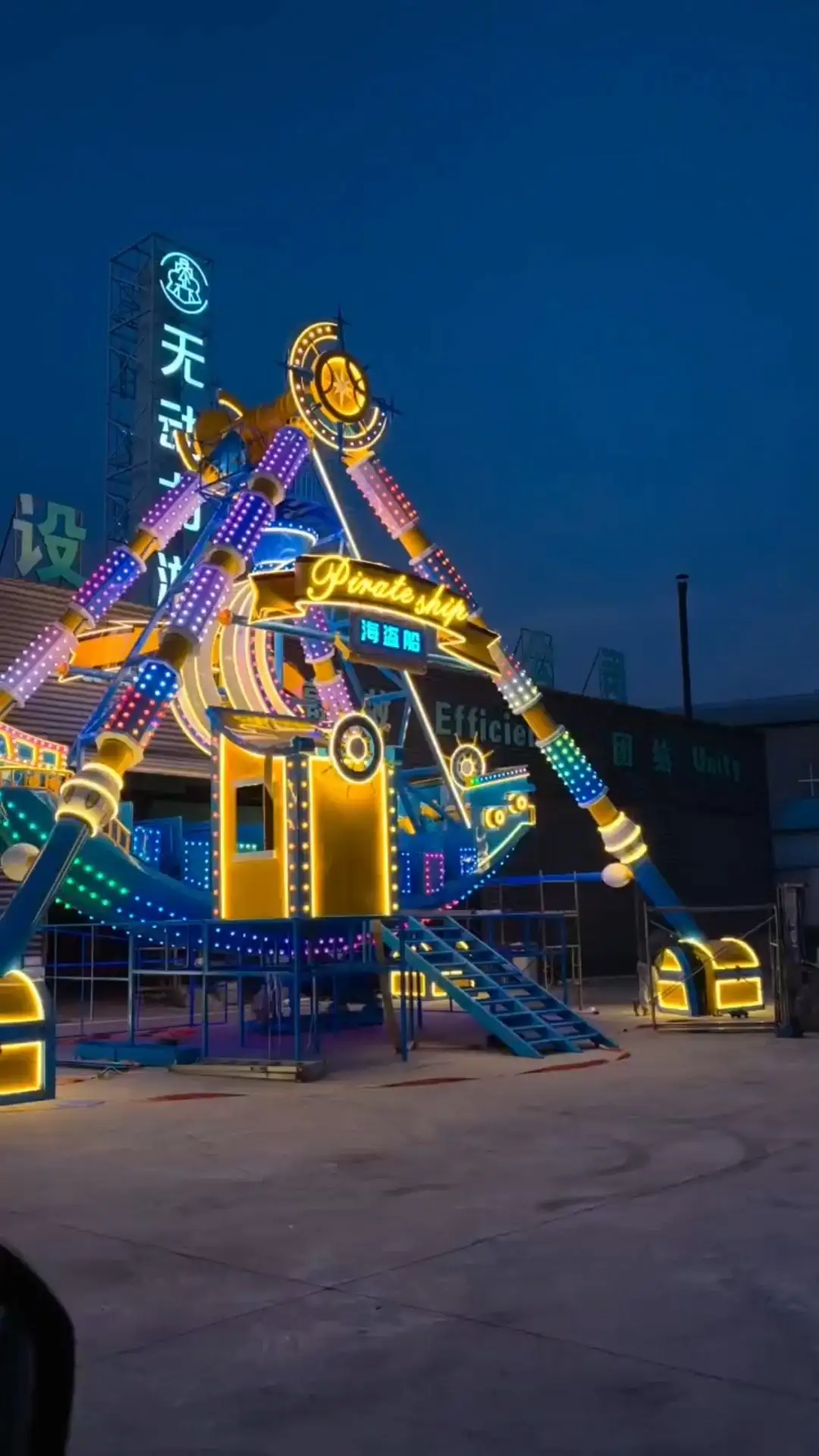

Product Display
Safety Features Detail
1. Dual Braking System — Mechanical + Electric Redundancy
Every LIMEIQI pirate ship ride is equipped with two independent braking mechanisms: a primary variable-frequency electric brake and a secondary spring-loaded mechanical disc brake. If either system fails, the other engages automatically to bring the vessel to a controlled stop within 8 seconds. This dual-brake architecture exceeds EN 13814 European amusement device standards and has been validated through 10,000+ emergency-stop test cycles without failure.
2. Over-Speed Protection with Automatic Cut-Out
An intelligent PLC-based control system monitors swing velocity in real time. If the swing angle exceeds the preset threshold (configurable per venue), the system immediately reduces motor torque and activates the braking sequence. A separate centrifugal governor provides hardware-level overspeed protection independent of electronic controls — a fail-safe design inherited from elevator safety engineering.
3. Four-Point Harness Restraint System
Rider safety begins with proper restraint. Our pirate ships use an individual four-point harness (two shoulder belts + waist lap bar + between-legs strap) for each seat. The harness features a positive-locking mechanism that cannot be opened while the ride is in motion, indicated by a red/green status light visible to operators. All restraint components are manufactured from stainless steel 304 or aircraft-grade aluminum alloy with a minimum 5:1 safety factor against rated load.
4. Emergency Stop Stations at Multiple Positions
Emergency stop buttons are installed at three locations: the main control console, the operator platform adjacent to the loading station, and one passenger-accessible stop button inside the cabin area (where regional codes permit). All E-stop buttons are mushroom-head type with tamper-proof covers, wired in series to cut power to both drive motors simultaneously.
5. Structural Fatigue Monitoring & Load Distribution Analysis
The main pendulum axle and support arms undergo finite element analysis (FEA) during design phase, followed by physical fatigue testing exceeding 2 million swing cycles — equivalent to 15 years of continuous daily operation. Stress concentration points are equipped with strain-gauge sensors (optional IoT monitoring package available) that feed real-time data to the maintenance dashboard.
6. Fire-Retardant Materials Throughout
Every material used above deck meets UL94 V-0 flame-retardancy standards: FRP hull panels, seat upholstery foam, safety harness webbing, and interior decorative elements are self-extinguishing within 3 seconds of ignition source removal. This specification is mandatory for indoor venues and strongly recommended for all configurations.
7. Zero-Accident Track Record Since 1986
Perhaps our most important safety credential: LIMEIQI has maintained zero major safety incidents across its entire 40-year operational history involving pirate ship rides shipped to 150+ countries. This record reflects not just quality manufacturing, but rigorous pre-shipment testing, comprehensive operator training programs, and proactive maintenance guidance provided to every client.
Product parameters
| Place of Origin | Henan,China (Mainland) |
| Brand Name | Limeiqi |
| Product Name | Pirate Ship Ride (Swing Ride) |
| Capacity | 16 / 24 / 32 / 42 / 56 / 72 seats (customizable) |
| Hull Material | FRP (Fiberglass-Reinforced Plastic) |
| Frame Material | Galvanized Steel Frame (Q235B) |
| Height | 7.2m |
| Area | 12m x 6m |
| Power | 11kw |
| Drive System | Variable-Frequency Electric Drive |
| Swing angle | ±60° (standard) / up to ±75° (max) |
| warranty | 12 Months (Mechanical & Electrical) / 36 Months (Structural) |
| Certificate | CE, ISO9001, BV, TÜV, SASO |
| Voltage | 220V/380V |
FAQ
Q1: What certifications do LIMEIQI pirate ship rides hold?
A: All our pirate ship rides carry full international certification coverage: CE marking (European conformity), ISO9001 (quality management), Bureau Veritas (BV) inspection, TÜV Rheinland safety validation, and SASO (Gulf Cooperation Council compliance). These certifications are recognized in 150 countries where our products operate
Q2: What is the typical installation timeline?
A: From order confirmation to grand opening, the full process takes approximately 45–60 working days: 5–7 days for foundation drawings and site prep guidance, 30–40 days for manufacturing and factory testing, 7–10 days for ocean freight shipping, and 3–5 days for on-site assembly and commissioning.
Q3: Can the pirate ship be customized for my park's theme?
A: Absolutely — customization is one of our core strengths. We offer full theming customization including hull color schemes, decorative figureheads, custom artwork, branded signage, LED lighting packages, and audio system integration. Share your concept art or theme description and our design team will render 3D visualizations before production begins.
Q4: What seating capacities are available?
A: Our standard product line includes 16-seat, 24-seat, 32-seat, 42-seat, 56-seat, and 72-seat configurations. For venues requiring non-standard layouts, we manufacture custom units ranging from 12 seats (compact indoor/carnival models) up to 100 seats (destination attraction scale). Seat spacing complies with EN 13814 requirements
Q5: Do you offer installation services and operator training?
A: Yes — comprehensive after-sales service is included with every purchase. This covers: (1) remote installation supervision via video call throughout assembly, (2) optional on-site technician dispatch (client covers travel/accommodation), (3) full operator training program covering daily operations, safety inspections, emergency procedures, and routine maintenance schedules, and (4) lifetime technical support via email and WhatsApp.
Q6: What is the warranty coverage and spare parts availability?
A: All LIMEIQI pirate ship rides include a 12-month comprehensive warranty covering all mechanical and electrical components against manufacturing defects. Structural components (main frame, pendulum axle, hull body) carry a 36-month extended warranty. We maintain a spare parts inventory for all models produced in the past 15 years, with express shipping available to most destinations within 5–7 business days. Post-warranty service is available at competitive rates through our global partner network.
Company Introduction
LIMEIQI HISTORY
More than 40+years amusement rides manufacturing with own factory. 20 years exporting history & the longest time Golden Supplier in Alibaba. Top 1 in Henan Province, Top 5 in China. Exported to more than 150+ countries in the world.
Partners
Limeigi Company Culture Information
● Limeiqi= LMQ = LOVE + MAGIC + QUALITY=Love Team+ Magic Rides+ Quality Efficiency
● Limeigi Aim: Quality is Limeigi culture.
● Quality is the first objective, customer demands is the highest demands .
● Limeiqi Slogan: Because of professional, we are outstanding.
● Limeiqi corporate vision: Bring happiness to every corner of the world.
OUR HONOR CERTIFICATE
◆ Limeiqi is the only one who has 9 Special Equipment Manufacture License in Henan Province.Domestic installation is not allowed without this certificate.
◆ Foreign certificate CE,ISQ9001, TUV, BV, SASO,SONCAP and so on
◆ The only one manufacturer in Henan Province tomake large size ferris wheel. And our ferris wheel has been exported to ltaly,lsrael and other markets.
